Accessories / Cables

Overview

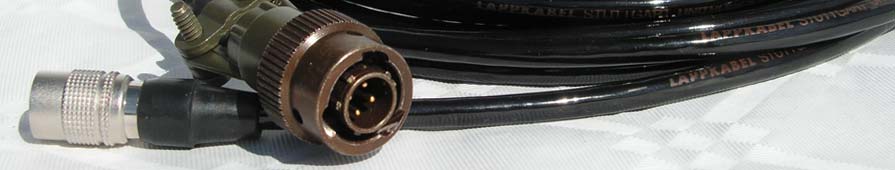

An essential part of any GPR system is the set of cables that provide control, power and data flow. During a GPR survey the cables are highly affected by the survey site conditions, which can in result affect the gathered data. We put great care into meeting high quality standards with all of the Geoscanners products, and cables are no exception. This is why we make sure to provide cables with significant resilience to mechanical abuse and robust connectors, which are often hand-picked from the military specification niche.

Besides cables that are used with Geoscanners products, we also provide cables that can be used with products from other GPR manufacturers. The cables have different standard lengths, but are also available in custom lengths, as shown in the tables below.

Options

  • Used with Geoscanners products
  • Used with products from other GPR manufacturers
  • Large variety of different lengths
  • Custom lengths are an option
Request a Quote

Control Cables

CTR-901
Name Details Length
CTR-900 Control cable for the Akula 9000 control units 0.6m
CTR-901 Control cable for the Akula 9000 control units 3m
CTR-902 Control cable for the Akula 9000 control units 6m
CTR-903 Control cable for the Akula 9000 control units 20m
CTR-900-CS Control cable for the Akula 9000 control units Custom length
CTR-E907 Control cable for multiplexers and smart antennas 1.5m
CTR-E908 Control cable for multiplexers and smart antennas 0.6m
CTR-G903 Control cable for GSSI compatible antennas 3m
CTR-G904 Control cable for GSSI compatible antennas 7m
CTR-B925 Borehole antenna cable for the Akula 9000 control units 25m
CTR-B950 Borehole antenna cable for the Akula 9000 control units 50m
CTR-BG905 Borehole antenna cable for GSSI units 25m
CTR-BG925 Borehole cable for TW-100 and GSSI compatible systems 25m
CTR-BG906 Borehole cable for GSSI compatible systems 50m
CTR-BG976 Borehole antenna cable for GSSI units 100m
CTR-BG900-CS Borehole antenna cable for GSSI units Custom Length

Survey Encoder Cables

SEC-103
Name Details Length
SEC-101 Survey cable for the Akula 9000 control units 1m
SEC-102 Survey encoder cable for the PiL system 1m
SEC-103 Survey encoder cable with a metal connector for the Akula 9000 control units 1m
SEC-705 Survey encoder cable for Geoscanners and GSSI antennas 1m

Miscellaneous Cables

NKUSB-1
Name Details Length
SBC-705 SMA to BNC Coaxial Cable 1.5m
PPC-121 Car lighter plug-in power cable 0.68m
NKUSB-1 Radar control unit communication cable USB 1m
NKUSB-3 Radar control unit communication cable USB 3m
