Complete Survey Systems / Odin

Overview

The Odin GPR survey system was designed for shallow surface applications that focus on small targets and require the best possible resolution. To achieve this, the Odin systems use the high-end capabilities of the Akula 9000 control units, high frequency antennas from the GCB-series and a selection of customized accessories. It is simple to switch to Odin from another system, U-Explorer for example, because the systems are highly scalable. Both use the same SVC-820 carts, many similar accessories and control unit (unless an Akula 9000C is required). This gives the GPR operators a freedom of having access to many different systems without needing to own a large storage department.

The Odin systems provide excellent resolution in shallow areas, which is what the system is aimed for. The level of detail depends on the included antenna, but the common factor in all Odin systems is that the targets will be easily and quickly detected. There are three different Odin systems, depending on the depth and resolution needs of the survey. The table below shows the differences in more detail, but please do not hesitate to contact our support engineers to help you choose the perfect system configuration for your survey requirements.

Included Products

The products below are standard products that are included in all Odin systems. Modifications can be made, depending on the survey requirements and user needs.

Apart from the listed products, all Geoscanners systems include quick professional support and GPR training at the Geoscanners facility in Sweden or at another location around the world (read more here).

  • High frequency ground coupled antenna from the GCB-series
  • Akula 9000 Control Unit
  • SVC-820, 4-wheel survey cart with an integrated survey wheel
  • Laptop
  • GPRSoft Standard post-processing software
  • GAS acquisition software
  • Battery and charger
  • Accessories
  • Odin-1000

    The Odin system is ready
    to be used as soon as it arrives.

  • Odin-1000

    Excellent resolution in shallow areas.

  • Odin-1000

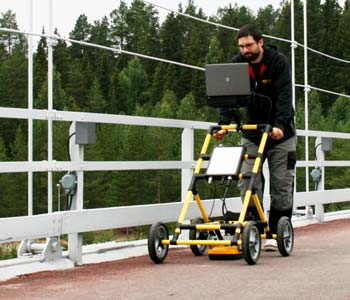

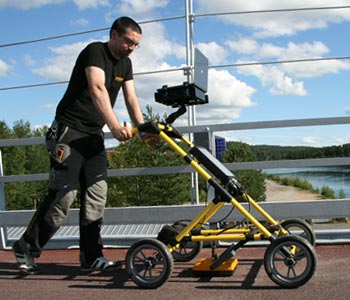

    Perfect for shallow utility surveys and bridge assessment surveys.

Applications

  • Rebar inspection
  • Low speed road and bridge assessment surveys
  • Concrete inspection
  • Ice thickness
  • Shallow utility survey
Request a Quote

Odin System Configurations

System Antenna Control Unit Penetration Depth* Resolution/target size** Details
Odin-1000 GCB-1000 Akula 9000B ~1m 0.05m All purpose system for inspection that require more depth than the rest of the Odin systems.
Odin-1500 GCB-1500 Akula 9000C ~0.6m 0.025m A balanced selection between the penetration depth and resolution.
Odin-2000 GCB-2000 Akula 9000C ~0.4m 0.01m System for targeting very shallow areas, providing extremely detailed reflections from the available targets.

*Maximum depth of penetration estimated for RDP=6,σ<0.1mS
**In average low conductive soils
